NTE917

Integrated Circuit

NTE917 Features

* make the NTE917 useful from DC to 120MHz. Bias and load resistors have been omitted to provide maximum application flexibility. The monolithic construction of the NTE917 provides close electrical and thermal matching of the amplifiers. This feature makes this device particularly useful in dual

NTE917 General Description

The NTE917 is an integrated circuit consisting of two independent differential amplifiers with associated constant

*current transistors on a common monolithic substrate. The six NPN transistors which comprise the amplifiers are general purpose devices which exhibit low 1/f noise an a value o.

NTE917 Datasheet (128.04 KB)

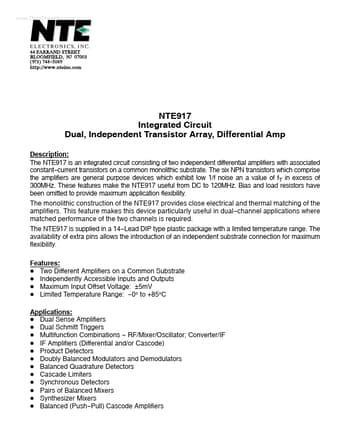

Preview of NTE917 PDF

Datasheet Details

Part number:

NTE917

Manufacturer:

NTE

File Size:

128.04 KB

Description:

Integrated circuit.
