NTE93 - Silicon Complementary Transistors

📥 Download Datasheet

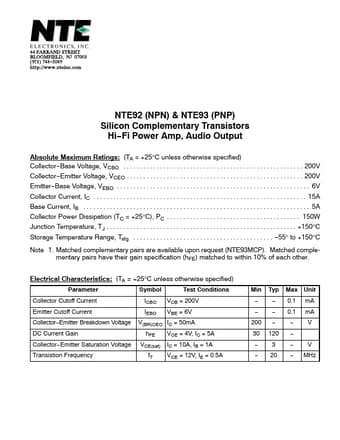

Datasheet preview – NTE93

Datasheet Details

Part number NTE93
Manufacturer NTE
File Size 51.95 KB
Description Silicon Complementary Transistors
Datasheet download datasheet NTE93 Datasheet
Additional preview pages of the NTE93 datasheet.

📁 Similar Datasheet

  • NTE931 - 3-Terminal Positive Voltage Regulator (NTE Electronics)
  • NTE932 - 3-Terminal Positive Voltage Regulator (NTE Electronics)
  • NTE933 - Positive 3 Terminal Voltage Regulator (NTE Electronics)
  • NTE934 - Positive 3 Terminal Voltage Regulator (NTE Electronics)
  • NTE935 - 3-Terminal Adjustable Positive Voltage Regulator (NTE Electronics)
  • NTE937 - JFET Input Operational Amplifier (NTE Electronics)
  • NTE9370 - Quad D-Type Flip-Flop (NTE Electronics)
  • NTE937M - JFET Input Operational Amplifier (NTE Electronics)
  • NTE938 - Precision Operational Amplifier (NTE Electronics)
  • NTE938M - Precision Operational Amplifier (NTE Electronics)
Other Datasheets by NTE
  • NTE91 - Silicon Complementary Transistors
  • NTE917 - Integrated Circuit
  • NTE954 - 4-Terminal Negative Adjustable Voltage Regulator
  • NTE-247 - Silicon Complementary Transistors Darlington Power Amplifier
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier
  • NTE100 - Germanium Complementary Transistors Oscillator
  • NTE1002 - Integrated Circuit FM IF TV Amp
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier

Full PDF Text Transcription

Click to expand full text
NTE92 (NPN) & NTE93 (PNP) Silicon Complementary Transistors Hi−Fi Power Amp, Audio Output Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector−Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Emitter−Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A Base Current, IB . . . . . . . . . . . . . . . . . . . . .
