R40-11D2-12C - PC Mount Relays

This page provides the datasheet information for the R40-11D2-12C, a member of the R40-11D2-5 PC Mount Relays family.

Datasheet Summary

Features

  • Ultra.
  • Sensitive Coil Epoxy Sealed Standard 0.1” DIP Terminal FCC Pt.68 Dual Coil, Latching Type (C) DPDT, 2 Amp, Sensitive Coil, Single Contact PC Mountable Relay for use in Telecommunications, Computer Peripherals, and Security Equipment. D34 D34a .433 (11.0) .330 (8.38) .200 (5.08) .200 (5.08) .398 (10.11) .787 (20.0) .200 (5.08) .300 .200 (5.08) (7.62) .300 .398 (7.62) (10.11) .100 .200(2.54) (5.08) .300 (7.62) .787 (20.0) DPDT, 2 Form “C” 89 6 11 4 13 1 16 DPDT, 2 Form “C.

📥 Download Datasheet

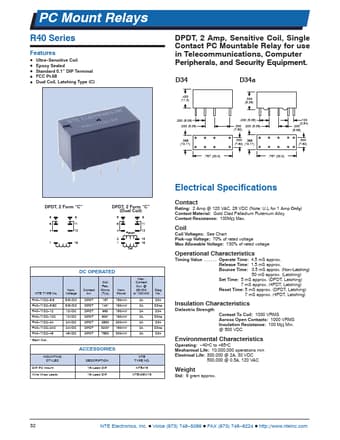

Datasheet preview – R40-11D2-12C

Datasheet Details

Part number R40-11D2-12C
Manufacturer NTE
File Size 501.23 KB
Description PC Mount Relays
Datasheet download datasheet R40-11D2-12C Datasheet
Additional preview pages of the R40-11D2-12C datasheet.

📁 Similar Datasheet

  • R4000 - High Voltage Silicon Rectifier Diode (HVGT)
  • R4000 - 500mA & 200mA High Voltage Silicon Rectifier (SEP ELECTRONIC)
  • R4000 - HIGH VOLTAGE RECTIGIERS (HY)
  • R4000 - HIGH VOLTAGE SILICON RECTIFIER (MIC)
  • R4000 - High Voltage General Purpose Plastic Rectifiers (LRC)
  • R4000 - HIGH VOLTAGE SILICON RECTIFIERS (SEMTECH)
  • R4000 - HIGH VOLTAGE SILICON RECTIFIER (Dc Components)
  • R4000 - HIGH VOLTAGE SILICON RECTIFIER (Rectron Semiconductor)
  • R4000 - High Voltage General Purpose Plastic Rectifiers (LRC)
  • R4000 - High Voltage Rectifiers (LGE)
Other Datasheets by NTE

Full PDF Text Transcription

Click to expand full text
PC Mount Relays R40 Series Features Ultra−Sensitive Coil Epoxy Sealed Standard 0.1” DIP Terminal FCC Pt.68 Dual Coil, Latching Type (C) DPDT, 2 Amp, Sensitive Coil, Single Contact PC Mountable Relay for use in Telecommunications, Computer Peripherals, and Security Equipment. D34 D34a .433 (11.0) .330 (8.38) .200 (5.08) .200 (5.08) .398 (10.11) .787 (20.0) .200 (5.08) .300 .200 (5.08) (7.62) .300 .398 (7.62) (10.11) .100 .200(2.54) (5.08) .300 (7.62) .787 (20.0) DPDT, 2 Form “C” 89 6 11 4 13 1 16 DPDT, 2 Form “C” (Dual Coil) 89 6 11 4 Reset 13 2 15 1 16 Set NTE TYPE No. R40−11D2−5/6 R40−11D2−5/6C R40−11D2−12 R40−11D2−12C R40−11D2−24 R40−11D2−24C R40−11D2−48 * Each Coil. DC OPERATED Nom. Voltage 5/6VDC 5/6VDC 12VDC 12VDC 24VDC 24VDC 48VDC Contact Arr.
