AAT001-10E

TMR Angle Sensor

AAT001-10E Features

* Tunneling Magnetoresistance (TMR) Technology

* Very High Output Signal Without Amplification

* Wide Airgap Tolerance

* Very High Resistance for Extremely Low Power

* Sine and Cosine Outputs Available

* Ultraminiature TDFN6 Package Typical Application

AAT001-10E General Description

The AAT001-10E angle sensor is a unique array of four Tunneling Magnetoresistance (TMR) elements rotated at 90 degree intervals in the package and connected in a bridge configuration. The output can be configured to represent the sine and cosine functions of the magnetic field applied to the sensor..

AAT001-10E Datasheet (316.46 KB)

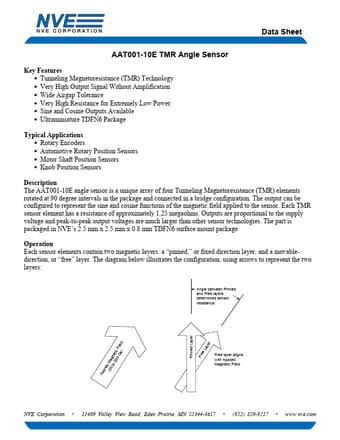

Preview of AAT001-10E PDF

Datasheet Details

Part number:

AAT001-10E

Manufacturer:

NVE

File Size:

316.46 KB

Description:

Tmr angle sensor.
