AKL003, AKL001 - Gear-Tooth Sensors

NVE

📥 Download Datasheet

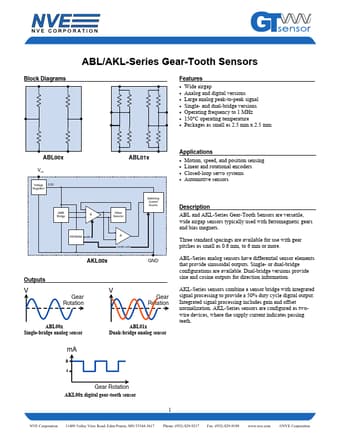

AKL003 Datasheet Preview — This datasheet PDF includes multiple part numbers: AKL003, AKL001. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AKL003, AKL001
Manufacturer	NVE
File Size	1.13 MB
Description	Gear-Tooth Sensors
Datasheet	AKL001-NVE.pdf
Note	This datasheet PDF includes multiple part numbers: AKL003, AKL001. Please refer to the document for exact specifications by model.

AKL003 Product details

Description

ABL and AKL-Series Gear-Tooth Sensors are versatile, wide airgap sensors typically used with ferromagnetic gears and bias magnets.

Features

Wide airgap.
Analog and digital versions.
Large analog peak-to-peak signal.
Single- and dual-bridge versions.
Operating frequency to 1 MHz.
150°C operating temperature.
Packages as small as 2.5 mm x 2.5 mm ABL00x VCC Voltage 3.3V Regulator GMR Bridge ABL01x A Offset Detector Switching Current Source Outputs V EEPROM Gain A Current Level AKL00x V Gear Rotation GND Gear Rotation ABL00x Single-bridge analog sensor ABL01x D.
