89LPC901FN Datasheet - NXP Semiconductors

89LPC901FN - P89LPC901FN

The P89LPC901/902/903 are single-chip microcontrollers in low-cost 8-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices.

Many system-level functions have been incorporated into the P89LPC901/

89LPC901FN Features

* 2.1 Principal features s 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage. s 128-byte RAM data memory. s Two 16-bit counter/timers. (P89LPC901 Timer 0 may be configured to toggle a po

89LPC901FN_NXPSemiconductors.pdf

Preview of 89LPC901FN PDF

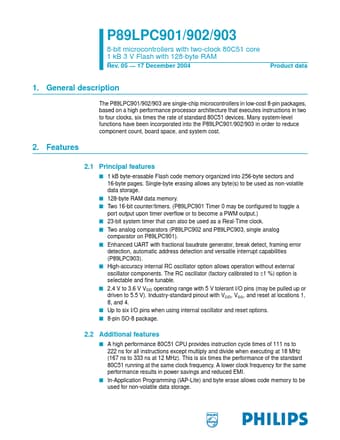

89LPC901FN Datasheet Preview Page 2 89LPC901FN Datasheet Preview Page 3

Datasheet Details

Part number:

89LPC901FN

Manufacturer:

NXP ↗ Semiconductors

File Size:

257.38 KB

Description:

p89lpc901fn.
