Part number: A3664AT
Manufacturer: NXP (https://www.nxp.com/) Semiconductors
File Size: 126.02KB
Download: 📄 Datasheet
Description: TDA3664AT
I I I I I I Fixed 5 V, 100 mA regulator Supply voltage range up to 45 V Very low quiescent current of 15 µA (typical value) Very low dropout voltage High ripple rejection.
To increase the lifetime of batteries, a specially built-in clamp circuit keeps the quiescent current of this regulator.

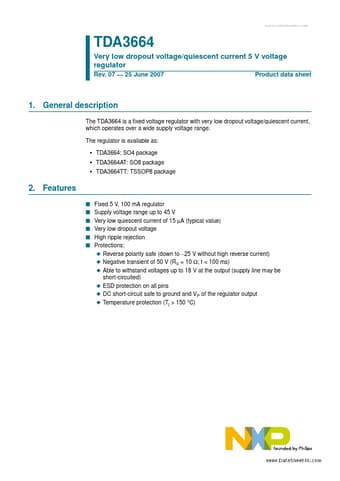

The TDA3664 is a fixed voltage regulator with very low dropout voltage/quiescent current, which operates over a wide supply voltage range. The regulator is available as:
* TDA3664: SO4 package
* TDA3664AT: SO8 package
* TDA3664TT: TSSOP8 .
