BGA7027 - high linearity silicon amplifier

Datasheet Summary

Description

The BGA7027 MMIC is a one-stage amplifier, offered in a low-cost surface-mount package.

It delivers 28 dBm output power at 1 dB gain compression and a superior performance up to 2700 MHz.

Features

  • 400 MHz to 2700 MHz frequency operating range.
  • 11 dB small signal gain at 2 GHz.
  • 28 dBm output power at 1 dB gain compression.
  • Integrated active biasing.
  • External matching allows broad.

📥 Download Datasheet

Datasheet preview – BGA7027

Datasheet Details

Part number BGA7027
Manufacturer NXP Semiconductors
File Size 542.55 KB
Description high linearity silicon amplifier
Datasheet download datasheet BGA7027 Datasheet
Additional preview pages of the BGA7027 datasheet.

📁 Similar Datasheet

  • BGA7024 - 400 MHz to 2700 MHz 0.25 W high linearity silicon amplifier (NXP)
  • BGA711N7 - SiGe Bipolar 3G/3.5G/4G Single-Band LNA (Infineon)
  • BGA7124 - high linearity silicon amplifier (NXP)
  • BGA7127 - high linearity silicon amplifier (NXP)
  • BGA7130 - high linearity silicon amplifier (NXP)
  • BGA713N7 - Single-Band UMTS LNA (Infineon)
  • BGA715N7 - Silicon Germanium Low Noise Amplifier (Infineon)
  • BGA725L6 - Silicon Germanium Low Noise Amplifier (Infineon)
  • BGA728L7 - Broadband Low Noise Amplifier (Infineon)
  • BGA729N6 - Broadband Low Noise Amplifier (Infineon)
Other Datasheets by NXP Semiconductors
  • BGA2801 - MMIC wideband amplifier
  • BGA2850 - MMIC wideband amplifier
  • BGA2870 - MMIC wideband amplifier
  • BGA3012 - 1GHz 12dB gain wideband amplifier MMIC

Full PDF Text Transcription

Click to expand full text

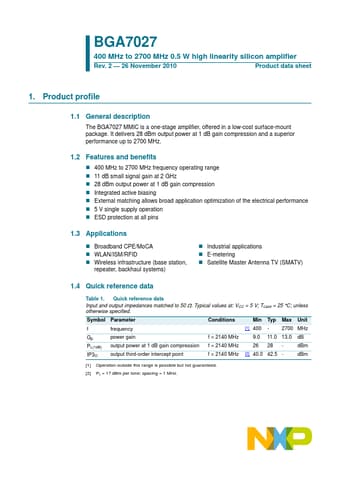

BGA7027 400 MHz to 2700 MHz 0.5 W high linearity silicon amplifier Rev. 2 — 26 November 2010 Product data sheet 1. Product profile 1.1 General description The BGA7027 MMIC is a one-stage amplifier, offered in a low-cost surface-mount package. It delivers 28 dBm output power at 1 dB gain compression and a superior performance up to 2700 MHz. 1.2 Features and benefits  400 MHz to 2700 MHz frequency operating range  11 dB small signal gain at 2 GHz  28 dBm output power at 1 dB gain compression  Integrated active biasing  External matching allows broad application optimization of the electrical performance  5 V single supply operation  ESD protection at all pins 1.
