CBT3244A - Octal bus switch

Description

The CBT3244A provides eight bits of high-speed TTL-compatible bus switching in a standard '244 device pinout.

The low ON-state resistance of the switch allows connections to be made with minimal propagation delay.

Features

  • s Standard '244-type pinout s 5 Ω switch connection between two ports s TTL compatible control input levels s Package options include: x plastic small outline (SO20) x shrink small outline (SSOP20) x shrink small outline, QSOP (SSOP20) x thin shrink small outline (TSSOP20) x depopulated heatsink very thin quad flat package, no leads (DHVQFN20) s Latch-up protection exceeds 500 mA per JESD78 s ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C10.

📥 Download Datasheet

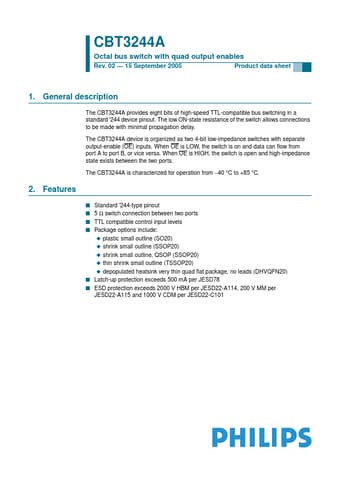

Datasheet preview – CBT3244A

Datasheet Details

Part number CBT3244A
Manufacturer NXP Semiconductors
File Size 95.96 KB
Description Octal bus switch
Datasheet download datasheet CBT3244A Datasheet
Additional preview pages of the CBT3244A datasheet.

📁 Similar Datasheet

  • CBT3244A - Octal bus switch (nexperia)
  • CBT3244 - Octal bus switch with Quad Output Enables (NXP)
  • CBT3245 - Octal bus switch with output enable (NXP)
  • CBT3245A - Octal bus switch (NXP)
  • CBT3245A - Octal bus switch (nexperia)
  • CBT3245A-Q100 - Octal bus switch (nexperia)
  • CBT3251 - 1-of-8 FET multiplexer/demultiplexer (nexperia)
  • CBT3253 - Dual 1-of-4 FET multiplexer/demultiplexer (NXP)
  • CBT3253 - Dual 1-of-4 FET multiplexer/demultiplexer (nexperia)
  • CBT3253A - Dual 1-of-4 FET multiplexer/demultiplexer (NXP)
Other Datasheets by NXP Semiconductors
  • CBT3251 - 1-of-8 FET multiplexer/demultiplexer
  • CBT3861 - 10-bit bus switch
  • CBTD3861 - 10-bit level shifting bus switch
  • CBTL03SB212 - DisplayPort Gen2 sideband signal multiplexer
  • CBTL06121 - Gen1 hex display multiplexer
  • CBTL06122 - High-performance DisplayPort/PCIe Gen2 hex display multiplexer
  • CBTL06DP211 - DisplayPort Gen1 2:1 multiplexer
  • CBTL06GP212 - High performance DisplayPort switch

Full PDF Text Transcription

Click to expand full text
CBT3244A Octal bus switch with quad output enables Rev. 02 — 15 September 2005 Product data sheet 1. General description The CBT3244A provides eight bits of high-speed TTL-compatible bus switching in a standard '244 device pinout. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay. The CBT3244A device is organized as two 4-bit low-impedance switches with separate output-enable (OE) inputs. When OE is LOW, the switch is on and data can flow from port A to port B, or vice versa. When OE is HIGH, the switch is open and high-impedance state exists between the two ports. The CBT3244A is characterized for operation from −40 °C to +85 °C. 2.
