IP4280CZ10 Datasheet - NXP Semiconductors

IP4280CZ10, ESD protection

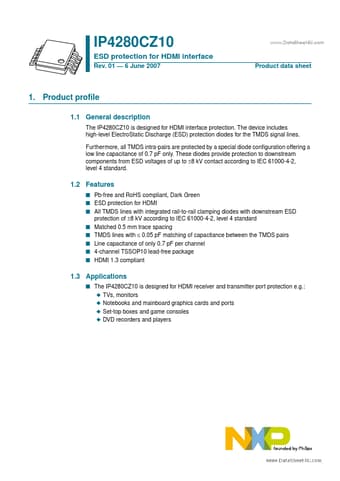

IP4280CZ10 ESD protection for HDMI interface Rev.01 * 6 June 2007 www.DataSheet4U.com Product data sheet 1.Product proﬁle 1.1 General des.
The IP4280CZ10 is designed for HDMI interface protection.

datasheet Preview Page 1 from Datasheet4u.com

IP4280CZ10_NXPSemiconductors.pdf

IP4280CZ10 Datasheet Preview — Preview of IP4280CZ10 PDF

Datasheet Details

Part number:

IP4280CZ10

Manufacturer:

NXP ↗ Semiconductors

File Size:

81.61 KB

Description:

ESD protection

Features

* I Pb-free and RoHS compliant, Dark Green I ESD protection for HDMI I All TMDS lines with integrated rail-to-rail clamping diodes with downstream ESD protection of ±8 kV according to IEC 61000-4-2, level 4 standard I Matched 0.5 mm trace spacing I TMDS lines with ≤ 0.05 pF matching of capacitance bet

Applications

* I The IP4280CZ10 is designed for HDMI receiver and transmitter port protection e. g. : N TVs, monitors N Notebooks and mainboard graphics cards and ports N Set-top boxes and game consoles N DVD recorders and players NXP Semiconductors IP4280CZ10 ESD protection for HDMI interface www. DataSheet4U. com
