NZH7V5C, NZH3V0B, Single Zener diodes

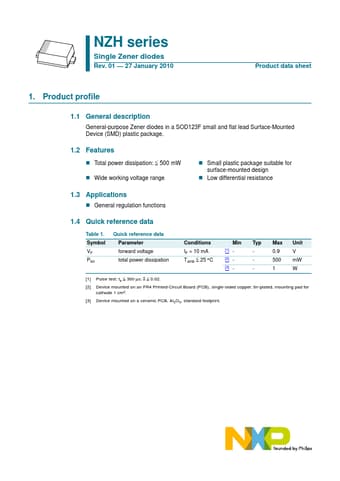

NZH series Single Zener diodes Rev.01 * 27 January 2010 Product data sheet 1.Product profile 1.1 General .
General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package. Total power dissip.

datasheet Preview Page 1 from Datasheet4u.com

NZH3V0B-NXPSemiconductors.pdf

NZH7V5C Datasheet Preview — This datasheet PDF includes multiple part numbers: NZH7V5C, NZH3V0B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NZH7V5C, NZH3V0B

Manufacturer:

NXP ↗ Semiconductors

File Size:

89.29 KB

Description:

Single Zener diodes

Note:

This datasheet PDF includes multiple part numbers: NZH7V5C, NZH3V0B.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: ≤ 500 mW
* Wide working voltage range
* Small plastic package suitable for surface-mounted design

Applications

* General regulation functions 1.4 Quick reference data Table 1. Symbol VF Ptot Quick reference data Parameter forward voltage total power dissipation Conditions Min Typ Max Unit IF = 10 mA [1] - - 0.9 V Tamb ≤ 25 °C [2] - - 500 mW [3] - - 1 W [1] Pulse test: tp ≤ 300 μs; δ ≤
