TJA1083 - FlexRay node transceiver

Description

The TJA1083 FlexRay node transceiver is compliant with the FlexRay Electrical Physical Layer specification V3.0.1 (see Ref.

1).

In order to meet JASPAR the equirements, it implements the ‘Increased voltage amplitude transmitter’ functional class.

Features

  • http://www. DataSheet4U. net/ 2.1 Optimized for time triggered communication systems.
  • Compliant with Electrical Physical Layer specification V3.0.1.
  • Meets JASPAR requirementsasdescribedinthe ‘Busdriverincreasedvoltage amplitudetransmitter ’functionalclass.
  • Automotive product qualification in accordance with AEC-Q100.
  • Data transfer rates from 2.5 Mbit/s to 10 Mbit/s.
  • Supports 60 ns minimum bit time at 400 mV differential input voltage.
  • Very low ElectroMagne.

📥 Download Datasheet

Datasheet preview – TJA1083

Datasheet Details

Part number TJA1083
Manufacturer NXP Semiconductors
File Size 894.49 KB
Description FlexRay node transceiver
Datasheet download datasheet TJA1083 Datasheet
Additional preview pages of the TJA1083 datasheet.

📁 Similar Datasheet

  • TJA1083G - FlexRay node transceiver (NXP)
  • TJA1080 - FlexRay transceiver (NXP)
  • TJA1081 - FlexRay Node Transceiver (NXP)
  • TJA1081G - FlexRay node transceiver (NXP)
  • TJA1082 - FlexRay Node Transceiver (NXP)
  • TJA1086G - FlexRay active star coupler (NXP)
  • TJA1010 - Octal Low Side Driver OLSD (NXP)
  • TJA1020 - LIN transceiver (NXP)
  • TJA1021 - ISO 17987/LIN 2.x/SAE J2602 transceiver (NXP)
  • TJA1022 - Dual LIN 2.2A/SAE J2602 transceiver (NXP)
Other Datasheets by NXP Semiconductors

Full PDF Text Transcription

Click to expand full text

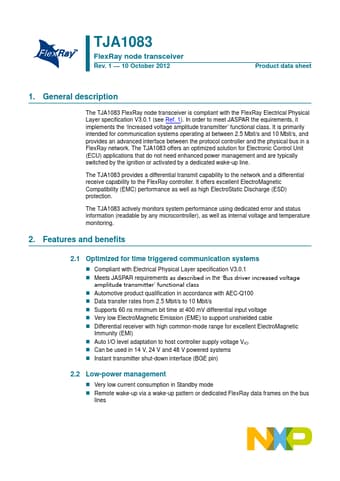

TJA1083 FlexRay node transceiver Rev. 1 — 10 October 2012 Product data sheet 1. General description The TJA1083 FlexRay node transceiver is compliant with the FlexRay Electrical Physical Layer specification V3.0.1 (see Ref. 1). In order to meet JASPAR the equirements, it implements the ‘Increased voltage amplitude transmitter’ functional class. It is primarily intended for communication systems operating at between 2.5 Mbit/s and 10 Mbit/s, and provides an advanced interface between the protocol controller and the physical bus in a FlexRay network. The TJA1083 offers an optimized solution for Electronic Control Unit (ECU) applications that do not need enhanced power management and are typically switched by the ignition or activated by a dedicated wake-up line.
