1N5225B - Voltage regulator diodes

1N5225B Description

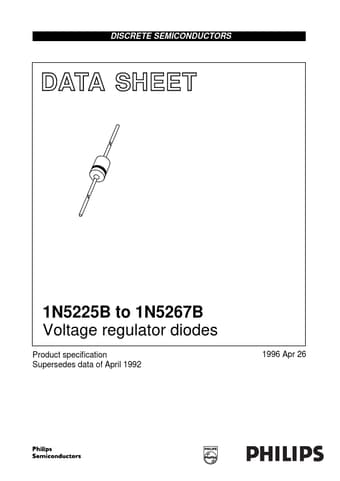

DISCRETE SEMICONDUCTORS DATA SHEET M3D176 1N5225B to 1N5267B Voltage regulator diodes Product specification Supersedes data of April 1992 1996 Apr 2.
Low-power voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages.

1N5225B Features

* Total power dissipation: max. 500 mW
* Tolerance series: ±5%
* Working voltage range: nom. 3.0 to 75 V

1N5225B Applications

* Low-power voltage stabilizers or voltage references. The diodes are type branded. Fig.1 Simplified outline (SOD27; DO-35) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL IF IZSM Ptot PARAMETER continuous forward current non-repetitive p
