2PC945 - NPN general purpose transistor

Description

NPN transistor in a TO-92 (SOT54) plastic package.

PNP complement: 2PA733.

Simplified outline (TO-92; SOT54) and symbol.

Features

  • Low current (max. 100 mA).
  • Low voltage (max. 50 V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PC4081Q-Q NPN general-purpose transistor nexperia
2PC4081R NPN transistor nexperia
2PC4081R-Q NPN general-purpose transistor nexperia
2PC4081S NPN transistor nexperia
2PC4081S-Q NPN general-purpose transistor nexperia

Other Datasheets by NXP Semiconductors

Part Number Description
2PC1815 NPN general purpose transistor
2PC4081 NPN general purpose transistor
2PC4617 NPN general purpose transistor
2PC4617M NPN general purpose transistors
2PC4617QM NPN general purpose transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

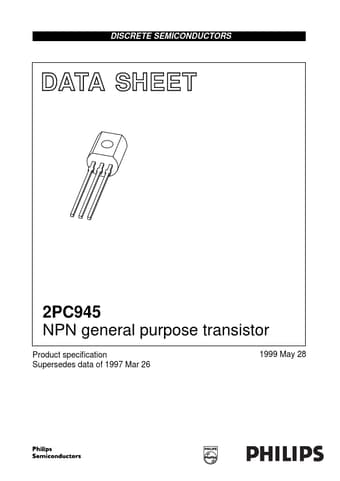

DISCRETE SEMICONDUCTORS DATA SHEET ndbook, halfpage M3D186 2PC945 NPN general purpose transistor Product specification Supersedes data of 1997 Mar 26 1999 May 28 Philips Semiconductors Product specification NPN general purpose transistor FEATURES • Low current (max. 100 mA) • Low voltage (max. 50 V). APPLICATIONS • General purpose switching and amplification. DESCRIPTION NPN transistor in a TO-92 (SOT54) plastic package. PNP complement: 2PA733. 1 handbook, halfpage 2PC945 PINNING PIN 1 2 3 base collector emitter DESCRIPTION 2 3 2 1 3 MAM259 Fig.1 Simplified outline (TO-92; SOT54) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).s SYMBOL VCBO VCEO VEBO IC ICM IBM Ptot Tstg Tj Tamb Note 1.
