4030B Datasheet - NXP

4030B Quadruple exclusive-OR gate

The HEF4030B provides the positive quadruple exclusive-OR function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance. HEF4030B gates Fig.2 Pinning diagram. HEF4030BP(N): HEF4030BD(F): HEF4030BT(D): 14-lead DIL; plastic (SOT27-1) 14-lead DIL;.

4030B_PhilipsSemiconductors.pdf

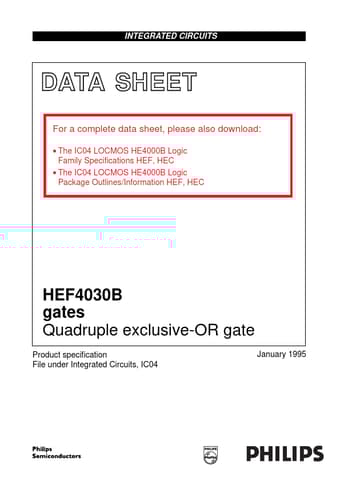

Preview of 4030B PDF
4030B Datasheet Preview Page 2 4030B Datasheet Preview Page 3

Datasheet Details

Part number:

4030B

Manufacturer:

NXP ↗

File Size:

28.19 KB

Description:

Quadruple exclusive-or gate.
