74HC3G07

Buffer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74HC3G07DP,125 IC BUFFER NON-INVERT 6V 8TSSOP DigiKey 1646 1000 units
$0.18

74HC3G07 Datasheet (120.81 KB)

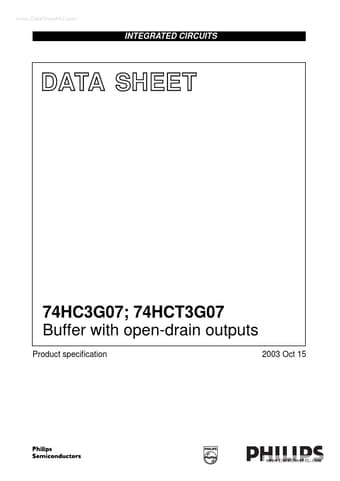

Preview of 74HC3G07 PDF Datasheet

Datasheet Details

Part number:

74HC3G07

Manufacturer:

NXP ↗

File Size:

120.81 KB

Description:

Buffer

74HC3G07 Features

* Wide supply voltage range from 2.0 to 6.0 V

* High noise immunity

* Low power dissipation

* ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V.

* Multiple package options

* Specified from

* 40 to +85 °C and

74HC3G07 General Description

74HC3G07; 74HCT3G07 The 74HC3G/HCT3G07 is a high-speed Si-gate CMOS device. Specified in compliance with JEDEC standard no. 7A. The 74HC3G/HCT3G07 provides three non-inverting buffers. The outputs of the 74HC3G/HCT3G07 devices are open drains and can be connected to other open-drain outputs to imp.
