AM6012

12-Bit multiplying D/A converter

AM6012 Features

* 12-bit resolution

* Accurate to within ±0.05%

* Monotonic over temperature

* Fast settling time, 250ns typical

* Trimless design for low cost

* Differential current outputs

* High-speed multiplying capability

* Full-scale current, 4m

AM6012 General Description

The AM6012 12-bit multiplying Digital-to-Analog converter provides high-speed and 0.025% differential nonlinearity over its full commercial temperature range. The D/A converter uses a 3-bit segment generator for the MSBs in conjunction with a 9-bit R-2R diffused resistor ladder to provide 12-bit res.

AM6012 Datasheet (107.28 KB)

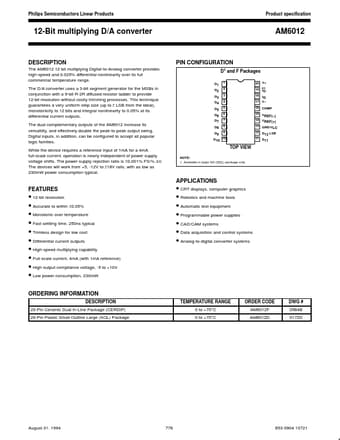

Preview of AM6012 PDF

Datasheet Details

Part number:

AM6012

Manufacturer:

NXP ↗

File Size:

107.28 KB

Description:

12-bit multiplying d/a converter.
