AU2902 - Low power quad operational amplifier

NXP

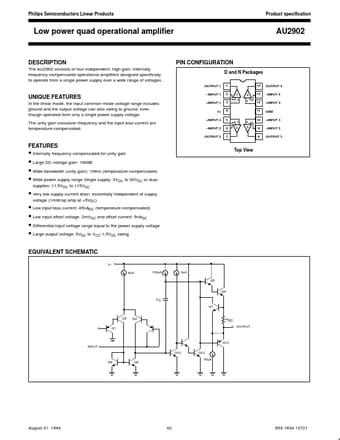

AU2902 Datasheet Preview — Preview of AU2902 PDF

Datasheet Details

Part number	AU2902
Manufacturer	NXP ↗
File Size	104.09 KB
Description	Low power quad operational amplifier
Datasheet	AU2902_PhilipsSemiconductors.pdf

AU2902 Product details

Description

The AU2902 consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. + 2 + 3 1 + 4 + 14 13 12 11 10 9 8 OUTPUT 4 INPUT 4 +INPUT 4 GND +INPUT 3 INPUT 3 OUTPUT 3 UNIQUE

Features

In the linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage. The unity gain crossover frequency and the input bias current are temperature-compensated.
INPUT 1 +INPUT 1 V+ +INPUT 2.
INPUT 2 OUTPUT 2.
