BA423AL

AM band-switching diode

NXP

BA423AL Features

* Continuous reverse voltage: max. 20 V

* Continuous forward current: max. 50 mA

* Low diode capacitance: max. 2.5 pF

* Low diode forward resistance: max. 1.2 Ω. APPLICATION

* Band switching in AM radio receivers. handbook, 4 columns BA423AL DESCRIPTION Lead

BA423AL General Description

Leadless diode in a hermetically-sealed glass SOD80C SMD package with lead/tin plated metal discs at each end. k a MAM061 Fig.1 Simplified outline (SOD80C) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VR IF Tstg Tj continuous reverse voltag.

BA423AL Datasheet (29.24 KB)

BA423AL Datasheet Preview — Preview of BA423AL PDF

Datasheet Details

Part number:

BA423AL

Manufacturer:

NXP ↗

File Size:

29.24 KB

Description:

Am band-switching diode.

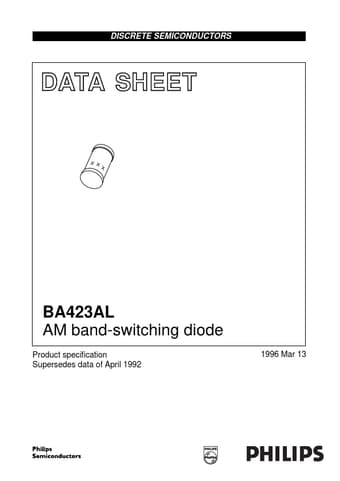

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D121 BA423AL AM band-switching diode Product speciﬁcation Supersedes data of April 1992 1996 Ma.
