BAV103, Single general-purpose switching diodes

BAV102; BAV103 Single general-purpose switching diodes Rev.4 * 6 August 2010 Product data sheet 1.Product profile 1.1 General .
Single general-purpose switching diodes, fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C Surface-Mounted D.

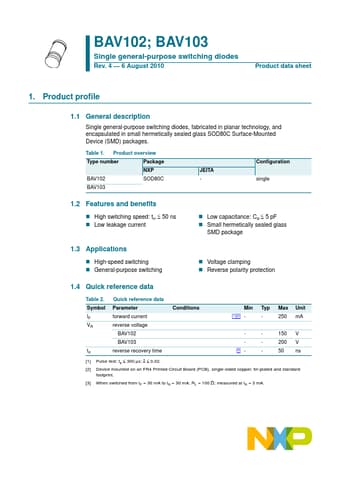

datasheet Preview Page 1 from Datasheet4u.com

BAV103_PhilipsSemiconductors.pdf

BAV103 Datasheet Preview — Preview of BAV103 PDF

Datasheet Details

Part number:

BAV103

Manufacturer:

NXP ↗

File Size:

98.88 KB

Description:

Single general-purpose switching diodes

Features

* High switching speed: trr ≤ 50 ns
* Low leakage current
* Low capacitance: Cd ≤ 5 pF

Applications

* High-speed switching
* General-purpose switching
* Voltage clamping
* Reverse polarity protection 1.4 Quick reference data Table 2. Symbol IF VR trr Quick reference data Parameter forward current reverse voltage BAV102 BAV103 reverse recovery time Conditions M
