BC546A - NPN Transistor

Datasheet Summary

Description

NPN general-purpose transistors in Surface Mounted Device (SMD) plastic packages.

Table 1.

Features

  • General-purpose transistors.
  • SMD plastic packages.
  • Two different gain selections 1.3.

📥 Download Datasheet

Datasheet preview – BC546A

Datasheet Details

Part number BC546A
Manufacturer NXP
File Size 144.22 KB
Description NPN Transistor
Datasheet download datasheet BC546A Datasheet
Additional preview pages of the BC546A datasheet.

📁 Similar Datasheet

  • BC546A - NPN Transistor (Kingtronics)
  • BC546A - NPN Transistor (RECTRON)
  • BC546A - General Purpose NPN Transistors (Diotec)
  • BC546A - SILICON NPN TRANSISTORS (Central Semiconductor)
  • BC546A - NPN Transistor (Pan Jit International)
  • BC546A - NPN Transistor (Taiwan Semiconductor)
  • BC546 - Amplifier Transistors (Motorola Inc)
  • BC546 - NPN Transistor (Fairchild Semiconductor)
  • BC546 - NPN Transistor (Kingtronics)
  • BC546 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

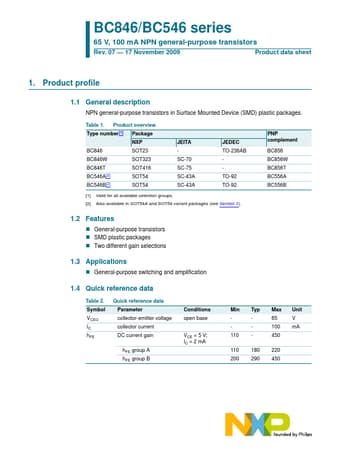

BC846/BC546 series 65 V, 100 mA NPN general-purpose transistors Rev. 07 — 17 November 2009 Product data sheet 1. Product profile 1.1 General description NPN general-purpose transistors in Surface Mounted Device (SMD) plastic packages. Table 1. Product overview Type number[1] Package NXP BC846 SOT23 BC846W SOT323 BC846T SOT416 BC546A[2] SOT54 BC546B[2] SOT54 JEITA SC-70 SC-75 SC-43A SC-43A JEDEC TO-236AB TO-92 TO-92 PNP complement BC856 BC856W BC856T BC556A BC556B [1] Valid for all available selection groups. [2] Also available in SOT54A and SOT54 variant packages (see Section 2). 1.2 Features „ General-purpose transistors „ SMD plastic packages „ Two different gain selections 1.3 Applications „ General-purpose switching and amplification 1.
