BC818-16W

NPN general purpose transistor

BC818-16W Features

* High current (max. 500 mA)

* Low voltage (max. 45 V). APPLICATIONS

* General purpose switching and amplification. DESCRIPTION NPN transistor in a SOT323 plastic package. PNP complement: BC807W. MARKING TYPE NUMBER BC817W BC817-16W BC817-25W BC817-40W Note 1. ∗ = - : Made in

BC818-16W General Description

NPN transistor in a SOT323 plastic package. PNP complement: BC807W. MARKING TYPE NUMBER BC817W BC817-16W BC817-25W BC817-40W Note 1. ∗ = - : Made in Hong Kong. ∗ = t : Made in Malaysia. Fig.1 MARKING CODE(1) 6D∗ 6A∗ 6B∗ 6C∗ TYPE NUMBER BC818W BC818-16W BC818-25W BC818-40W MARKING CODE(1) 6H∗ 6E∗ 6F∗.

BC818-16W Datasheet (49.62 KB)

Preview of BC818-16W PDF

Datasheet Details

Part number:

BC818-16W

Manufacturer:

NXP ↗

File Size:

49.62 KB

Description:

Npn general purpose transistor.

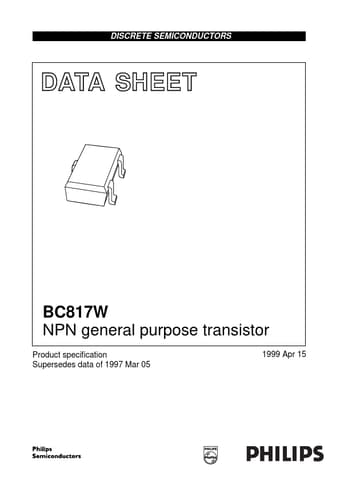

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D102 BC817W NPN general purpose transistor Product specification Supersedes data of 1997 Mar 05 .
