BFT25A - NPN 5GHz wideband transistor

Product Overview

NXP

BFT25A NPN 5GHz wideband transistor by NXP - Datasheet Preview — Datasheet preview – BFT25A

Datasheet Details

Part number	BFT25A
Manufacturer	NXP
File Size	140.70 KB
Description	NPN 5GHz wideband transistor
Datasheet	BFT25A Datasheet

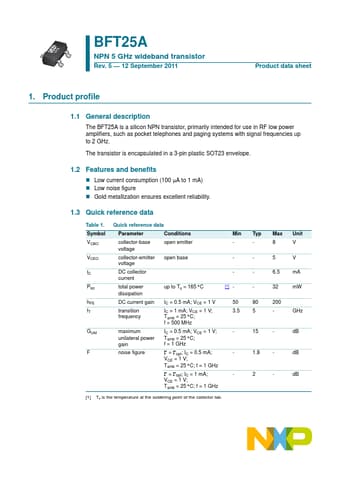

Additional preview pages of the BFT25A datasheet.

Product details

Description

The BFT25A is a silicon NPN transistor, primarily intended for use in RF low power amplifiers, such as pocket telephones and paging systems with signal frequencies up to 2 GHz.

Features

Low current consumption (100 A to 1 mA).
Low noise figure.
Gold metallization ensures excellent reliability. 1.3 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VCBO collector-base voltage open emitter - - 8V VCEO collector-emitter open base voltage - - 5V IC DC collector current - - 6.5 mA Ptot total power up to Ts = 165 C [1] - - 32 mW dissipation hFE DC current gain IC = 0.5 mA; VCE = 1 V 50 80 200 fT tr.
