BGY120A - UHF amplifier

Datasheet Summary

Description

The BGY120A and BGY120B are two-stage UHF amplifier modules in a SOT482B package with plastic cover.

Each module consists of two NPN silicon planar transistor dies mounted together with a matching and bias circuit components on a metallized ceramic substrate.

Features

  • Single 3.5 V nominal supply voltage.
  • 1 W output power.
  • Easy control of output power by DC voltage.
  • Very high efficiency (typ. 60%).
  • Silicon bipolar technology.
  • Standby current less than 10 µA.

📥 Download Datasheet

Datasheet preview – BGY120A

Datasheet Details

Part number BGY120A
Manufacturer NXP
File Size 45.82 KB
Description UHF amplifier
Datasheet download datasheet BGY120A Datasheet

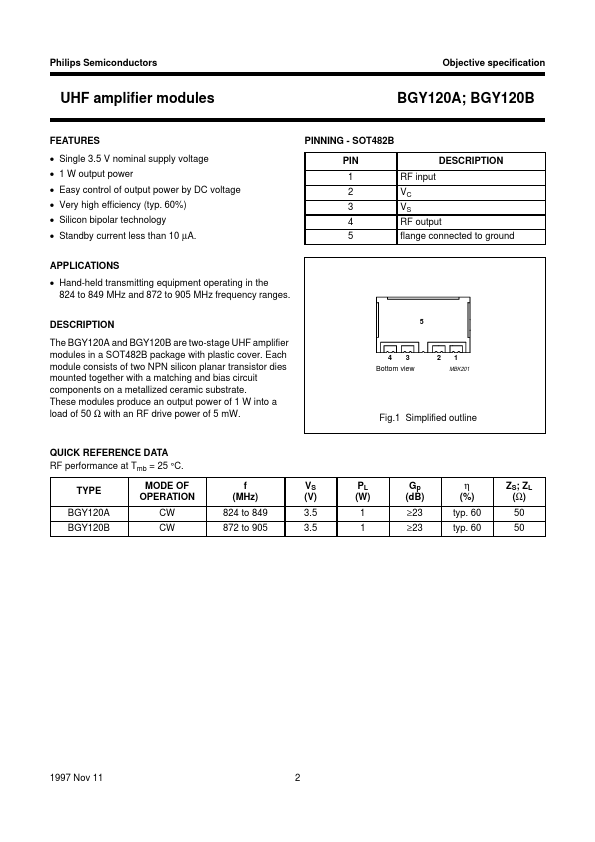

Additional preview pages of the BGY120A datasheet.

📁 Similar Datasheet

  • BGY114A - UHF amplifier modules (Philips)
  • BGY114B - UHF amplifier modules (Philips)
  • BGY114C - UHF amplifier modules (Philips)
  • BGY91A - UHF Power Amplifier Module (Signetics)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D373 BGY120A; BGY120B UHF amplifier modules Objective specification 1997 Nov 11 Philips Semiconductors Objective specification UHF amplifier modules FEATURES • Single 3.5 V nominal supply voltage • 1 W output power • Easy control of output power by DC voltage • Very high efficiency (typ. 60%) • Silicon bipolar technology • Standby current less than 10 µA. APPLICATIONS • Hand-held transmitting equipment operating in the 824 to 849 MHz and 872 to 905 MHz frequency ranges. DESCRIPTION The BGY120A and BGY120B are two-stage UHF amplifier modules in a SOT482B package with plastic cover.
