BGY685AD - Hybrid CATV amplifier

NXP

📥 Download Datasheet

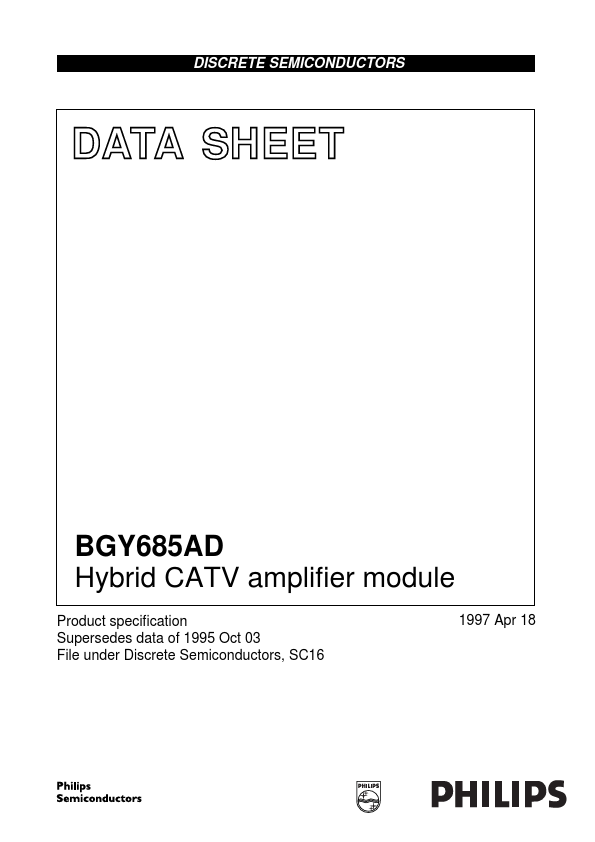

BGY685AD Datasheet Preview — Preview of BGY685AD PDF

datasheet Preview Page 2

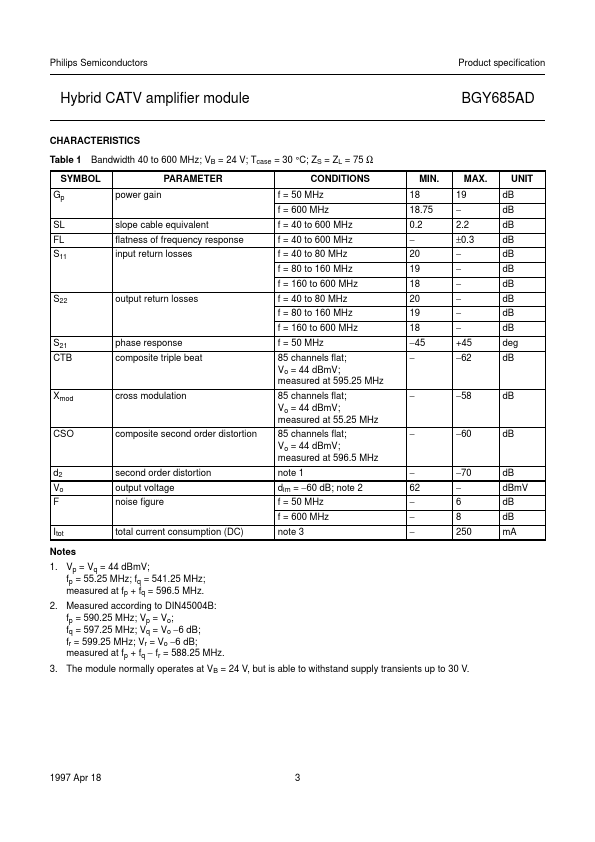

datasheet Preview Page 3

Datasheet Details

Part number	BGY685AD
Manufacturer	NXP ↗
File Size	63.23 KB
Description	Hybrid CATV amplifier
Datasheet	BGY685AD_PhilipsSemiconductors.pdf

BGY685AD Product details

Description

Hybrid high dynamic range cascode amplifier module with Darlington pre-stage dies operating at a voltage supply of +24 V in a SOT115J package.

Features

Excellent linearity.
Extremely low noise.
Silicon nitride passivation.
Rugged construction.
Gold metallization ensures excellent reliability.
