BT134-800E - 4Q Triac

Product Overview

NXP

📥 Download Datasheet

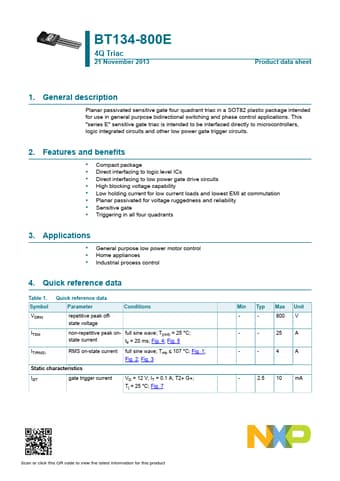

BT134-800E 4Q Triac by NXP - Datasheet Preview — Datasheet preview – BT134-800E

Datasheet Details

Part number	BT134-800E
Manufacturer	NXP
File Size	165.99 KB
Description	4Q Triac
Datasheet	BT134-800E Datasheet
Additional preview pages of the BT134-800E datasheet.

Product details

Description

Planar passivated sensitive gate four quadrant triac in a SOT82 plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

Compact package.
Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Sensitive gate.
Triggering in all four quadrants 3.
