BT134W-600D, 4Q Triac

BT134W-600D 4Q Triac 15 June 2016 Product data sheet 1.General .
Planar passivated very sensitive gate four quadrant triac in a SOT223 surface-mounable plastic package.

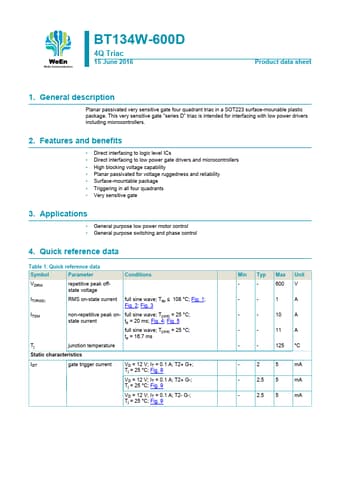

datasheet Preview Page 1 from Datasheet4u.com

BT134W-600D_PhilipsSemiconductors.pdf

BT134W-600D Datasheet Preview — Preview of BT134W-600D PDF

Datasheet Details

Part number:

BT134W-600D

Manufacturer:

NXP ↗

File Size:

228.92 KB

Description:

4Q Triac

Features

* Direct interfacing to logic level ICs
* Direct interfacing to low power gate drivers and microcontrollers
* High blocking voltage capability
* Planar passivated for voltage ruggedness and reliability
* Surface-mountable package
* Triggering in all fo

Applications

* General purpose low power motor control
* General purpose switching and phase control 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage IT(RMS) RMS on-state current full sine wave; Tsp ≤ 108 °C; Fig. 1;
