BT136-600D - 4Q Triac

Product Overview

NXP

BT136-600D 4Q Triac by NXP - Datasheet Preview — Datasheet preview – BT136-600D

Datasheet Details

Part number	BT136-600D
Manufacturer	NXP
File Size	186.51 KB
Description	4Q Triac
Datasheet	BT136-600D Datasheet

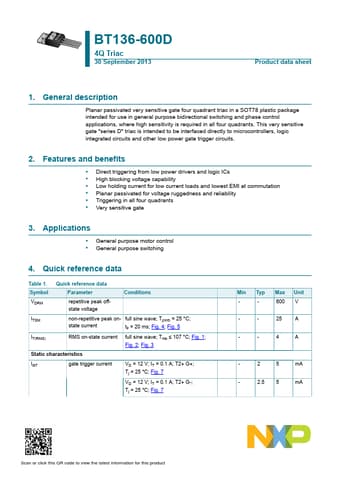

Additional preview pages of the BT136-600D datasheet.

Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate 3.
