BT137-800G0 - 4Q Triac

Datasheet Summary

Description

Planar passivated four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase control applications.

2.

Features

  • High blocking voltage capability.
  • Least sensitive gate for highest noise immunity.
  • High minimum IGT for guaranteed immunity to gate noise.
  • Planar passivated for voltage ruggedness and reliability.
  • Triggering in all four quadrants 3.

📥 Download Datasheet

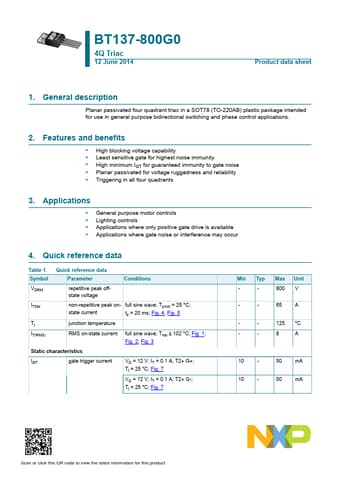

Datasheet preview – BT137-800G0

Datasheet Details

Part number BT137-800G0
Manufacturer NXP
File Size 192.92 KB
Description 4Q Triac
Datasheet download datasheet BT137-800G0 Datasheet
Additional preview pages of the BT137-800G0 datasheet.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
TO-220AB BT137-800G0 4Q Triac 12 June 2014 Product data sheet 1. General description Planar passivated four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase control applications. 2. Features and benefits • High blocking voltage capability • Least sensitive gate for highest noise immunity • High minimum IGT for guaranteed immunity to gate noise • Planar passivated for voltage ruggedness and reliability • Triggering in all four quadrants 3. Applications • General purpose motor controls • Lighting controls • Applications where only positive gate drive is avaliable • Applications where gate noise or interference may occur 4. Quick reference data Table 1.
