BU4522DX, Silicon Diffused Power Transistor

Philips Semiconductors Objective specification Silicon Diffused Power Transistor BU4522DX GENERAL .
Enhanced performance, new generation, high-voltage, high-speed switching npn transistor with an integrated damper diode in a plastic full-pack envelop.

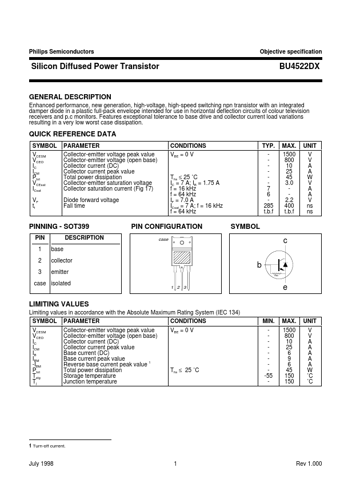

datasheet Preview Page 1 from Datasheet4u.com

BU4522DX_PhilipsSemiconductors.pdf

BU4522DX Datasheet Preview — Preview of BU4522DX PDF

Datasheet Details

Part number:

BU4522DX

Manufacturer:

NXP ↗

File Size:

23.02 KB

Description:

Silicon Diffused Power Transistor

Features

* exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation. QUICK REFERENCE DATA SYMBOL VCESM VCEO IC ICM Ptot VCEsat ICsat VF tf PARAMETER Collector-emitter voltage peak value Collector-emitter voltage (open base) Collector current (DC)
