BY8014 - Fast high-voltage soft-recovery controlled avalanche rectifiers

Product Overview

NXP

BY8014 Fast high-voltage soft-recovery controlled avalanche rectifiers by NXP - Datasheet Preview — Datasheet preview – BY8014

Datasheet Details

Part number	BY8014
Manufacturer	NXP
File Size	55.08 KB
Description	Fast high-voltage soft-recovery controlled avalanche rectifiers
Datasheet	BY8014 Datasheet

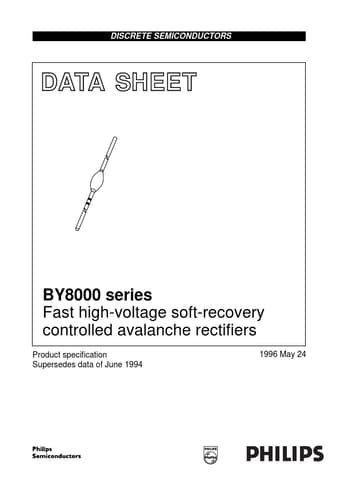

Additional preview pages of the BY8014 datasheet.

Product details

Description

Rugged glass package, using a high temperature alloyed construction. For colour television and monitors up to 25 kHz High-voltage applications for: Multipliers Layer-wound diode-splittransformers where controlled avalanche is required.

Features

Glass passivated.
High maximum operating temperature.
Low leakage current.
Excellent stability.
Guaranteed avalanche energy absorption capability.
Soft-recovery switching characteristics.
Compact construction. k handbook, halfpage BY8000 series expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas.
