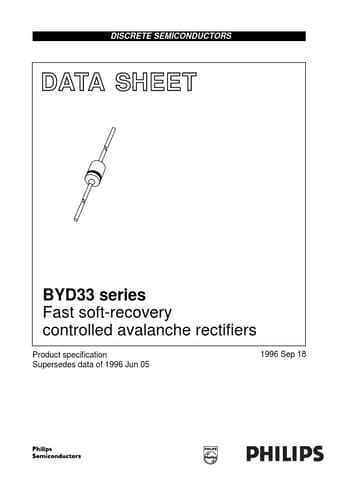

Part number: BYD33G
Manufacturer: NXP (https://www.nxp.com/)
File Size: 65.89KB
Download: 📄 Datasheet
Description: Fast soft-recovery controlled avalanche rectifiers
* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capabilit.
Cavity free cylindrical glass package through Implotec™(1) technology. This package is hermetically sealed
k
a
MAM123
Fig.1 Simplified outline (SOD81) and symbol.
LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SY.
