BYM26B - Fast soft-recovery controlled avalanche rectifiers

NXP

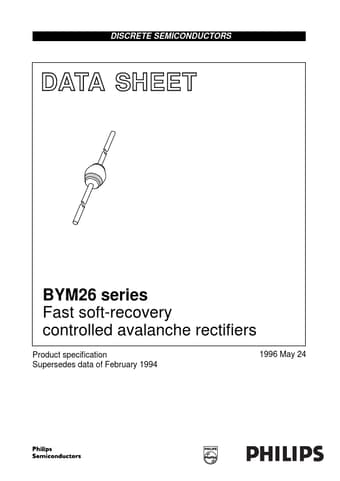

BYM26B Datasheet Preview — Preview of BYM26B PDF

Datasheet Details

Part number	BYM26B
Manufacturer	NXP ↗
File Size	70.24 KB
Description	Fast soft-recovery controlled avalanche rectifiers
Datasheet	BYM26B_PhilipsSemiconductors.pdf

BYM26B Product details

Description

Rugged glass SOD64 package, using a high temperature alloyed BYM26 series construction.This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.2/3 page k (Datasheet) Fig.1 Simplified outline (SOD64) and symbol.

Features

Glass passivated.
High maximum operating temperature.
Low leakage current.
Excellent stability.
Guaranteed avalanche energy absorption capability.
Available in ammo-pack.
Also available with preformed leads for easy insertion.
