BYR29X-800, Ultrafast power diode

www.DataSheet4U.com BYR29X-800 Ultrafast power diode Rev.01 * 12 July 2010 Product data sheet 1.Product profile 1.1 General .
Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package. Fast switching. Isolated plastic package.

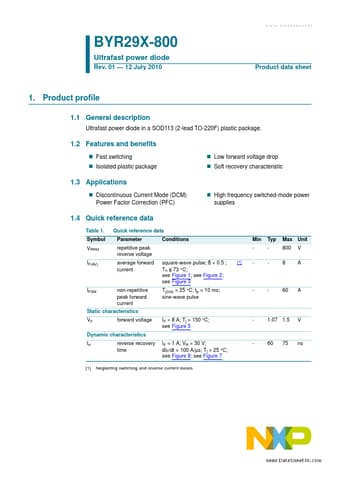

datasheet Preview Page 1 from Datasheet4u.com

BYR29X-800_PhilipsSemiconductors.pdf

BYR29X-800 Datasheet Preview — Preview of BYR29X-800 PDF

Datasheet Details

Part number:

BYR29X-800

Manufacturer:

NXP ↗

File Size:

287.59 KB

Description:

Ultrafast power diode

Features

* Fast switching
* Isolated plastic package
* Low forward voltage drop

Applications

* Discontinuous Current Mode (DCM) Power Factor Correction (PFC)
* High frequency switched-mode power supplies 1.4 Quick reference data Table 1. Symbol VRRM IF(AV) Quick reference data Parameter repetitive peak reverse voltage average forward current square-wave pulse; δ = 0.5 ; Th ≤ 73 °C;
