BZX79 Voltage regulator diodes

BZX79 Description

NXP Semiconductors Voltage regulator diodes Product data sheet BZX79 series .
Low-power voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages.

BZX79 Features

* Total power dissipation: max. 500 mW
* Two tolerance series: ±2%, and approx. ±5%
* Working voltage range: nom. 2.4 to 75 V (E24 range)

📥 Download Datasheet

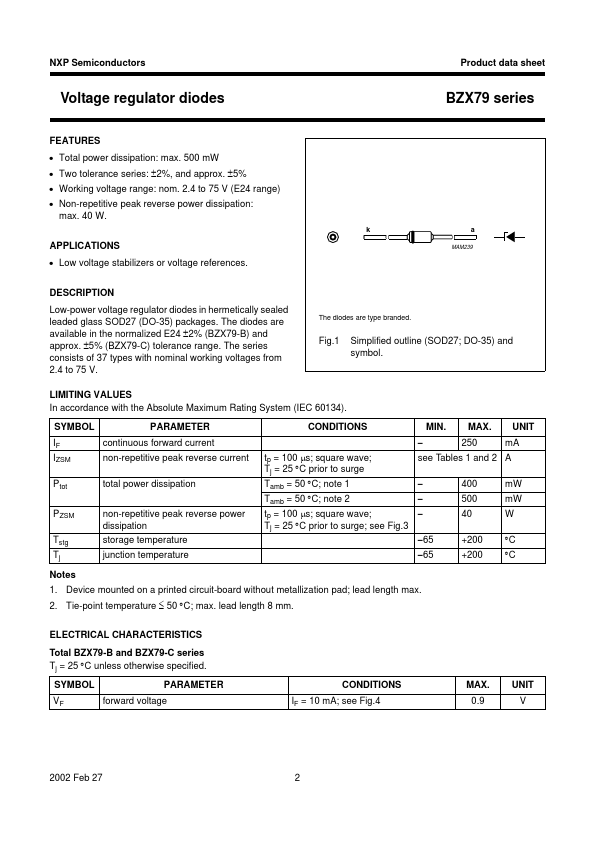

Preview of BZX79 PDF

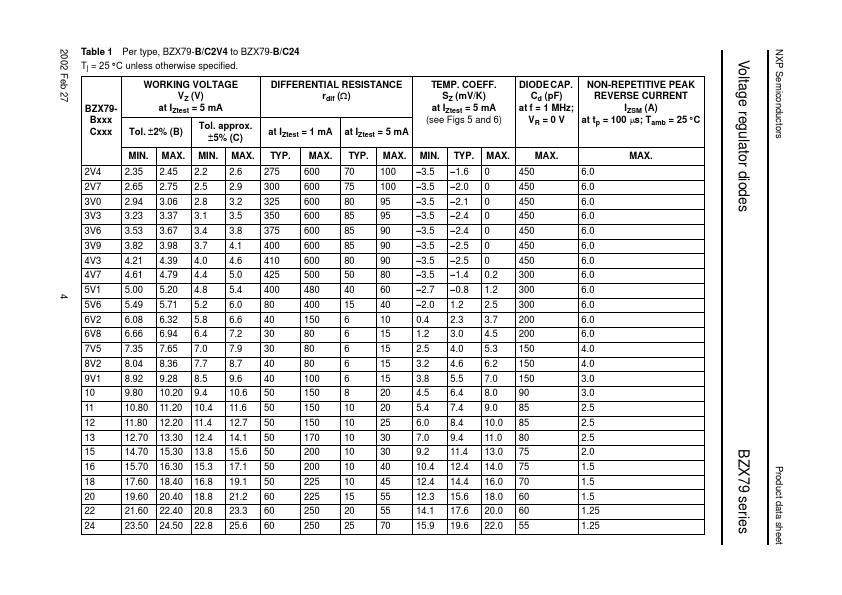

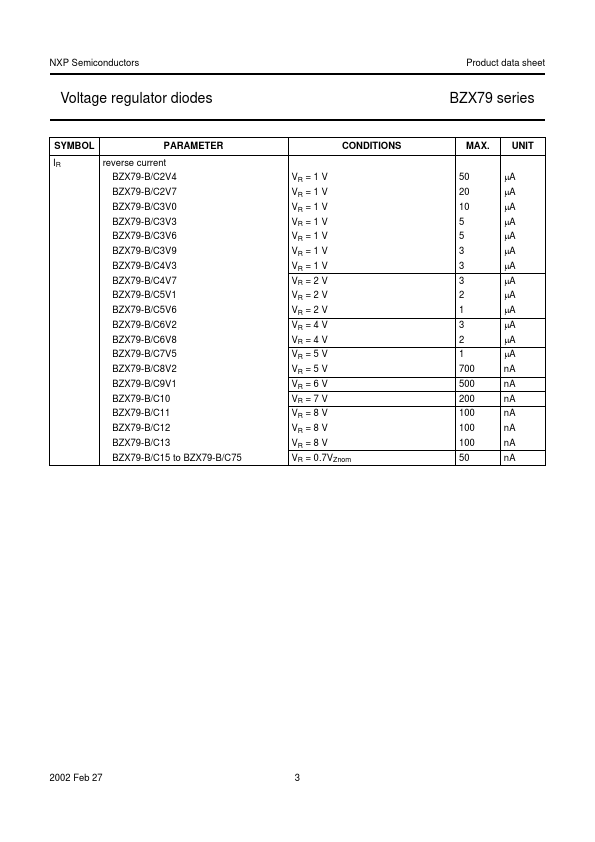

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BZX79
Manufacturer
NXP ↗
File Size
73.27 KB
Datasheet
BZX79-NXP.pdf
Description
Voltage regulator diodes
