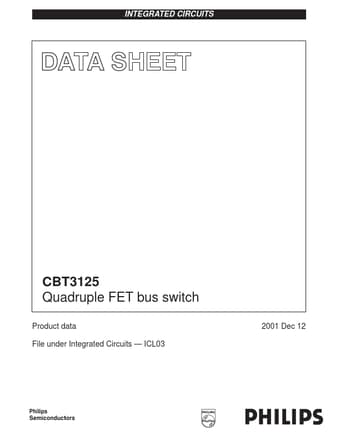

CBT3125
DESCRIPTION
The CBT3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated Output Enable (OE) input is HIGH.
PIN CONFIGURATION
1OE 1A 1B 1 2 3 4 5 6 7 14 VCC 13 4OE 12 4A 11 4B 10 3OE 9 8 3A 3B
FEATURES
- Standard ’125-type pinout (D, DB, and PW packages)
- 5 Ω switch connection between two ports
- TTL-patible input levels
- Latch-up testing is done to JESDEC Standard JESD78 which exceeds 500 m A
2OE 2A 2B GND
SA00562
Figure 1. SO14, SSOP14, and TSSOP14
- ESD protection exceeds 2000 V HBM per JESD22-A114,
200 V MM per JESD22-A115, and 1000 V CDM per JESD22-C101
NC 1OE 1A 1B 2OE 2A 2B GND 1 2 3 4 5 6 7 8 16 VCC 15 4OE 14 4A 13 4B 12 3OE 11 3A 10 3B 9 NC
SA00563
NC = no internal connection Figure 2. SSOP(QSOP)16
ORDERING INFORMATION
PACKAGES 14-Pin Plastic SO 14-Pin Plastic SSOP 16-Pin Plastic SSOP(QSOP) 14-Pin Plastic TSSOP TEMPERATURE RANGE
- 40 to +85 °C
- 40 to +85 °C
- 40 to +85 °C
- 40 to +85 °C ORDER CODE CBT3125D...
