CBT3257A

Quad 1-of-2 multiplexer/demultiplexer

CBT3257A Features

* 5 Ω switch connection between two ports TTL-compatible input levels Minimal propagation delay through the switch ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101 s Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA s s s s

CBT3257A General Description

The CBT3257A is a quad 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer. The low ON-state resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. Output enable (OE) and select-control (S) inputs select.

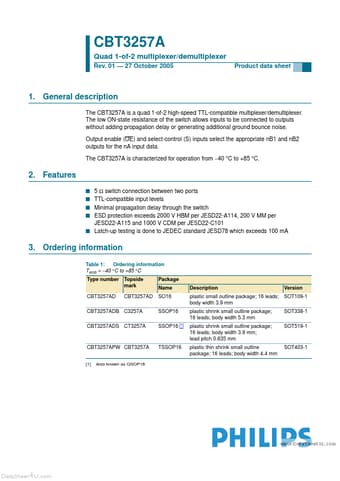

CBT3257A Datasheet (328.69 KB)

Preview of CBT3257A PDF

Datasheet Details

Part number:

CBT3257A

Manufacturer:

NXP ↗

File Size:

328.69 KB

Description:

Quad 1-of-2 multiplexer/demultiplexer.
