DAC08 8-Bit high-speed multiplying D/A converter

The DAC08 series of 8-bit monolithic multiplying Digital-to-Analog Converters provide very high-speed performance coupled with low cost and outstanding applications flexibility. Advanced circuit design achieves 70ns settling times with very low glitch and at low power consumption. Monotonic multiply.

DAC08 Features

* V

* 7 IO 8

* Fast settling output current

* 70ns

* Full-scale current prematched to ±1 LSB

* Direct interface to TTL, CMOS, ECL, HTL, PMOS

* Relative accuracy to 0.1% maximum over temperature range

* High output compliance -10V to +18V

DAC08_PhilipsSemiconductors.pdf

Preview of DAC08 PDF

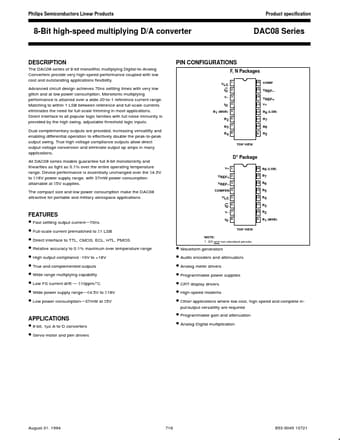

DAC08 Datasheet Preview Page 2 DAC08 Datasheet Preview Page 3
