GPS1502L Datasheet, Mmic, NXP

GPS1502L Features

  • Mmic
  • Covers full GNSS lower L-band, from 1164 MHz to 1299 MHz
  • Noise figure = 0.6 dB
  • Gain 17 dB
  • High-input 1 dB compression point of -13 dBm

PDF File Details

Part number:

GPS1502L

Manufacturer:

NXP ↗

File Size:

182.49kb

Download:

📄 Datasheet

Description:

Low-noise amplifier mmic. The GPS1502L is a Low-Noise Amplifier (LNA) for GNSS receiver applications and is available in a small plastic 6-pin extremely thin l

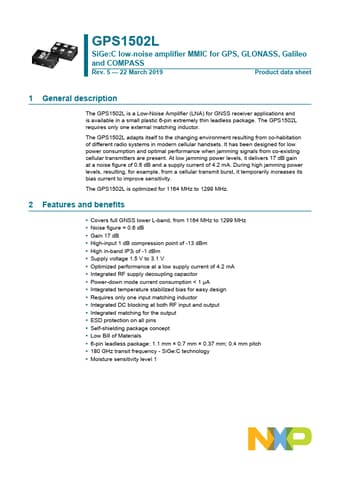

Datasheet Preview: GPS1502L 📥 Download PDF (182.49kb)
Page 2 of GPS1502L Page 3 of GPS1502L

GPS1502L Application

  • Applications and is available in a small plastic 6-pin extremely thin leadless package. The GPS1502L requires only one external matching inductor. T
