IP5311CX5 Datasheet - NXP

Dual-channel Integrated Passive Filter Network

IP5311CX5 Features

* make the IP5311CX5 ideal for use in applications requiring the utmost in miniaturization such as mobile phone handsets, cordless telephones and personal digital devices. 1.2 Features

* Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant)

* Dual-channel int

IP5311CX5 General Description

IP5311CX5 is a dual-channel RC low-pass filter array which is designed to provide filtering of undesired RF signals in the 10 MHz to 6 000 MHz frequency band. In addition, IP5311CX5 incorporates diodes to provide protection to downstream components from ElectroStatic Discharge (ESD) voltages as high.

IP5311CX5 Datasheet (499.80 KB)

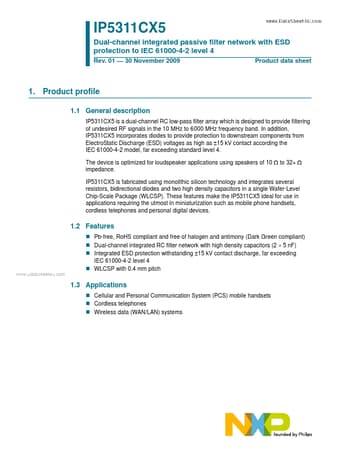

Preview of IP5311CX5 PDF

Datasheet Details

Part number:

IP5311CX5

Manufacturer:

NXP ↗

File Size:

499.80 KB

Description:

Dual-channel integrated passive filter network.
IP5311CX5 Dual-channel integrated passive filter network with ESD protection to IEC 61000-4-2 level 4 Rev. 01 30 November 2009 Product data .
