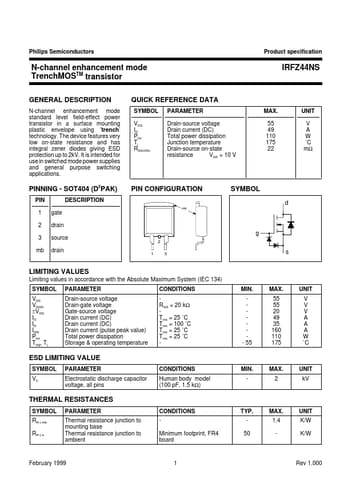

IRFZ44NS Datasheet | NXP Semiconductors

DESCRIPTION N-channel enhancement mode standard level field-effect power transistor in a surface mounting plastic envelope using ’trench’ technology. The device features very low on-state resistance and has integral zener diodes giving ESD protection up to 2k V. It is intended for use in switched mode power supplies and general purpose switching applications. QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 10 V MAX. 55 49 110 175 22 UNIT V A W ˚C mΩ PINNING - SOT404 (D2PAK) PIN 1 2 3 mb gate drain source drain DESCRIPTION PIN CONFIGURATION mb SYMBOL d g 2 1 3 s LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL VDS VDGR ±VGS ID ID IDM Ptot Tstg, Tj PARAMETER Drain-source voltage Drain-gate voltage Gate-source voltage Drain current (DC) Drain current (DC) Drain current (pulse peak value) Total power dissipation Storage & operating temperature CONDITIONS RGS = 20 kΩ Tmb = 25 ˚C Tmb = 100 ˚C Tmb = 25 ˚C Tmb = 25 ˚C MIN. - 55 MAX. 55 55 20 49 35 160 110 175 UNIT V V V A A A W ˚C ESD LIMITING VALUE SYMBOL VC PARAMETER Electrostatic discharge capacitor voltage, all pins CONDITIONS Human body model (100 p F, 1.5 kΩ) MIN. MAX. 2 UNIT k V THERMAL RESISTANCES SYMBOL Rth j-mb Rth j-a PARAMETER Thermal resistance junction to mounting base Thermal resistance junction to ambient CONDITIONS Minimum footprint, FR4 board TYP. 50 MAX. 1.4 UNIT K/W K/W February 1999 Rev 1.000 Philips Semiconductors Product specification N-channel enhancement mode Trench MOSTM transistor STATIC CHARACTERISTICS Tj= 25˚C unless otherwise specified SYMBOL V(BR)DSS VGS(TO) IDSS IGSS ±V(BR)GSS RDS(ON) PARAMETER Drain-source breakdown voltage Gate threshold voltage Zero gate voltage drain current Gate source leakage current CONDITIONS VGS = 0 V; ID = 0.25 m A; Tj = -55˚C VDS = VGS; ID = 1 m A Tj = 175˚C Tj =...
