ISP1103D - Universal Serial Bus transceiver

ISP1103D Description

ISP1103 Universal Serial Bus transceiver Rev.01 * 4 October 1999 Preliminary specification 1.General .
The ISP1103 is a single-chip generic Universal Serial Bus (USB) transceiver that is fully compliant with the Universal Serial Bus Specification Rev.

ISP1103D Features

* s s s s s s s s s s s s s s Complies with Universal Serial Bus Specification Rev. 1.1 Supports full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) serial data rates Slew-rate controlled differential data driver Differential input receiver with wide common-mode range and very high data input sensitivity

📥 Download Datasheet

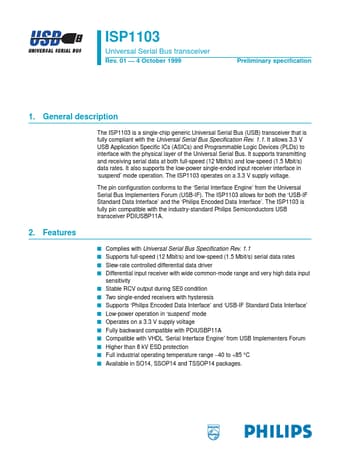

Preview of ISP1103D PDF
datasheet Preview Page 2 datasheet Preview Page 3
