ISP1104W, Advanced Universal Serial Bus transceiver

ISP1104 Advanced Universal Serial Bus transceiver Rev.02 * 14 October 2003 Product data 1.General .
The ISP1104 Universal Serial Bus (USB) transceiver is compliant with the Universal Serial Bus Speciﬁcation Rev.

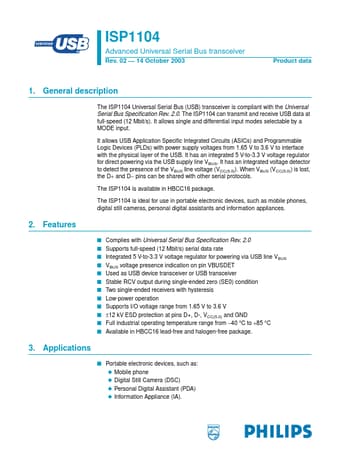

datasheet Preview Page 1 from Datasheet4u.com

ISP1104W_PhilipsSemiconductors.pdf

ISP1104W Datasheet Preview — Preview of ISP1104W PDF

Datasheet Details

Part number:

ISP1104W

Manufacturer:

NXP ↗

File Size:

494.76 KB

Description:

Advanced Universal Serial Bus transceiver

Features

* s s s s s s s s s s s s Complies with Universal Serial Bus Speciﬁcation Rev. 2.0 Supports full-speed (12 Mbit/s) serial data rate Integrated 5 V-to-3.3 V voltage regulator for powering via USB line VBUS VBUS voltage presence indication on pin VBUSDET Used as USB device transceiver or USB transceiver

Applications

* s Portable electronic devices, such as: x Mobile phone x Digital Still Camera (DSC) x Personal Digital Assistant (PDA) x Information Appliance (IA). Philips Semiconductors ISP1104 Advanced USB transceiver 4. Ordering information Table 1: Type number ISP1104W Ordering information Package Name HBCC
