Description

ISP1107 Advanced Universal Serial Bus transceiver Rev.01 * 23 February 2000 Objective speciﬁcation 1.General .
The ISP1107 is a Universal Serial Bus (USB) transceiver that is fully compliant with the Universal Serial Bus Speciﬁcation Rev.

📥 Download Datasheet

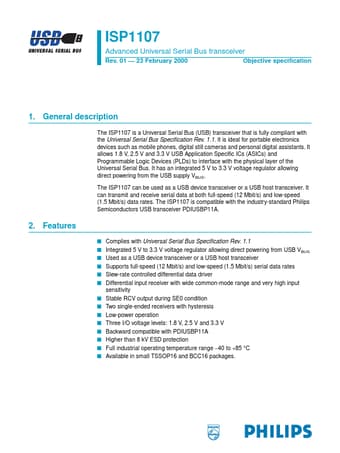

ISP1107 Datasheet Preview — Preview of ISP1107 PDF

Datasheet Specifications

Part number: ISP1107
Manufacturer: NXP ↗
File Size: 536.26 KB
Datasheet: ISP1107_PhilipsSemiconductors.pdf
Description: Advanced Universal Serial Bus transceiver

Features

* s s s s s s s s s s s s s s Complies with Universal Serial Bus Speciﬁcation Rev. 1.1 Integrated 5 V to 3.3 V voltage regulator allowing direct powering from USB VBUS Used as a USB device transceiver or a USB host transceiver Supports full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) serial data rate
