JC548 Datasheet - NXP

JC548_PhilipsSemiconductors.pdf

JC548 Datasheet Preview — Preview of JC548 PDF

Datasheet Details

Part number:

JC548

Manufacturer:

NXP ↗

File Size:

46.20 KB

Description:

Npn general purpose transistors.

JC548, NPN general purpose transistors

NPN transistor in a TO-92; SOT54 plastic package.

PNP complements: JC556, JC557 and JC558.

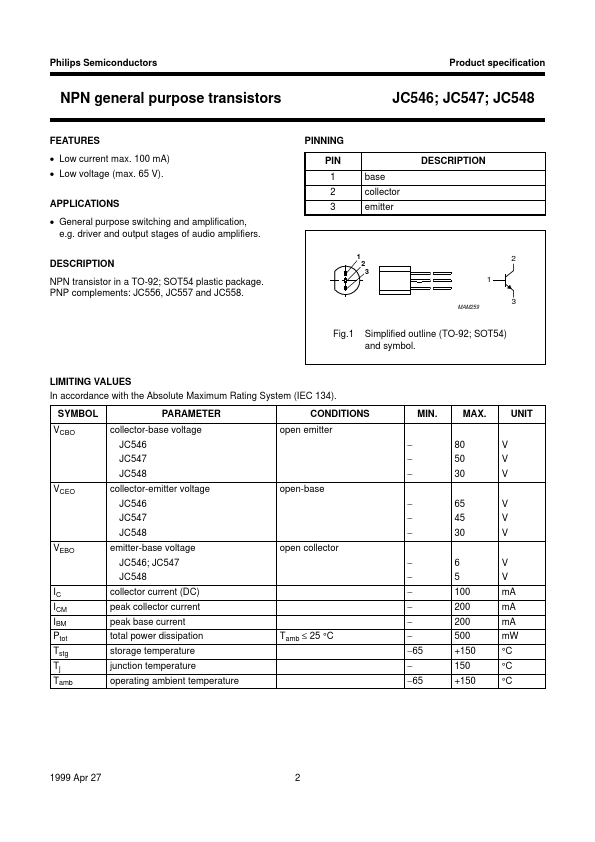

1 handbook, halfpage 2 3 JC546; JC547; JC548 PINNING PIN 1 2 3 base collector emitter DESCRIPTION 2 1 3 MAM259 Fig.1 Simplified outline (TO-92; SOT54) and symbol.

LIMITING VALUES In accordance with the A
