KMA220

Dual channel programmable angle sensor

KMA220 Features

* High precision sensor for magnetic

* High temperature range up to 160 C angular measurement

* Single package dual channel sensor

* Dual electric independent sensor module with integrated filters for channels with analog ratiometric output improved ElectroMagnetic Compatibil

KMA220 General Description

The KMA220 is a dual channel magnetic angle sensor module. The MagnetoResistive (MR) sensor bridges, the mixed signal Integrated Circuits (ICs) and the required capacitors are integrated into a single package. Both integrated channels are working full independently. The supply voltage has common ter.

KMA220 Datasheet (380.61 KB)

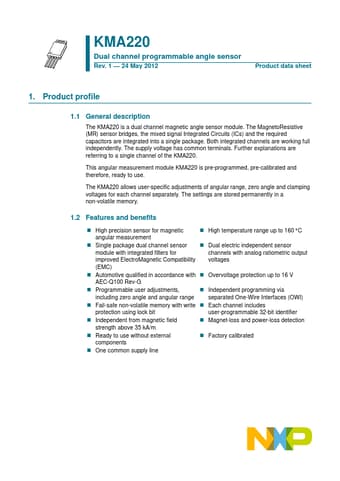

Preview of KMA220 PDF

Datasheet Details

Part number:

KMA220

Manufacturer:

NXP ↗

File Size:

380.61 KB

Description:

Dual channel programmable angle sensor.
