LPC1777 Datasheet - NXP

LPC1777 (LPC177x / LPC178x) 32-bit ARM Cortex-M3 microcontroller

The LPC178x/7x is an ARM Cortex-M3 based microcontroller for embedded applications requiring a high level of integration and low power dissipation. The Cortex-M3 is a next generation core that offers better performance than the ARM7 at the same clock rate and other system enhancements such as modern.

LPC1777 Features

* Functional replacement for the LPC23xx and LPC24xx family devices.

* System:

* ARM Cortex-M3 processor, running at frequencies of up to 120 MHz. A Memory Protection Unit (MPU) supporting eight regions is included.

* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)

LPC1777 Datasheet (1.95 MB)

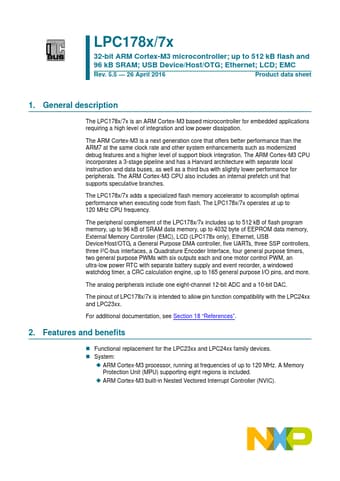

Preview of LPC1777 PDF

Datasheet Details

Part number:

LPC1777

Manufacturer:

NXP ↗

File Size:

1.95 MB

Description:

(lpc177x / lpc178x) 32-bit arm cortex-m3 microcontroller.
