LPC2106 Single-chip 32-bit microcontroller

LPC2106 Description

LPC2104/2105/2106 Single-chip 32-bit microcontrollers; 128 kB ISP/IAP flash with 16/32/64 kB RAM Rev.07 * 20 June 2008 Product data sheet .
The UART are based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 128 kB of embedded high speed flash.

LPC2106 Features

* 2. Features 2.1 New features implemented in LPC2104/2105/2106/01 devices I Fast GPIO port enables port pin toggling up to 3.5 times faster than the original device and also allows for a port pin to be read at any time regardless of its function. I UART 0/1 include fractional baud rate generator, au

LPC2106 Applications

* the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. Due to their tiny size and low power consumption, these microcontrollers are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. With a wide ra

📥 Download Datasheet

Preview of LPC2106 PDF

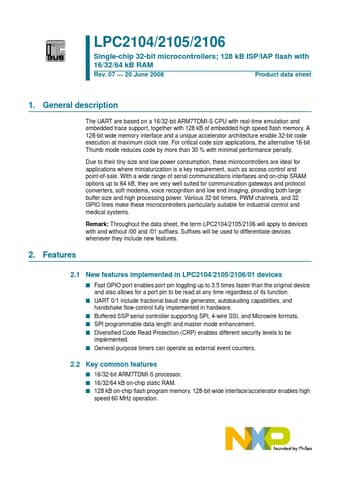

datasheet Preview Page 2 datasheet Preview Page 3
