LV74 Datasheet - NXP

Dual D-type flip-flop with set and reset; positive-edge trigger

LV74 Features

* Wide operating voltage: 1.0 to 5.5V

* Optimized for Low Voltage applications: 1.0 to 3.6V

* Accepts TTL input levels between VCC = 2.7V and VCC = 3.6V

* Typical VOLP (output ground bounce) t 0.8V @ VCC = 3.3V,

* Typical VOHV (output VOH undershoot) u 2V @ V

LV74 General Description

The 74LV74 is a low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT74. The 74LV74 is a dual positive edge triggered, D-type flip-flop with individual data (D) inputs, clock (CP) inputs, set (SD) and (RD) inputs; also complementary Q and Q outputs. The set and reset are a.

LV74 Datasheet (125.22 KB)

LV74 Datasheet Preview — Preview of LV74 PDF

Datasheet Details

Part number:

LV74

Manufacturer:

NXP ↗

File Size:

125.22 KB

Description:

Dual d-type flip-flop with set and reset; positive-edge trigger.

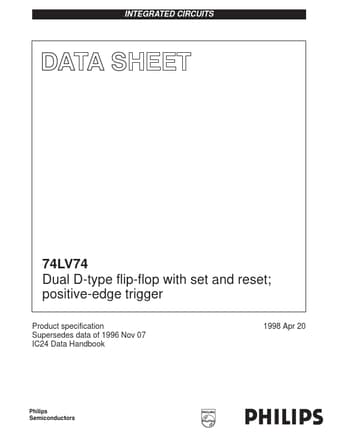

INTEGRATED CIRCUITS 74LV74 Dual D-type flip-flop with set and reset; positive-edge trigger Product specification Supersedes data of 1996 Nov 07 IC24 .
