MC1408-8

8-bit multiplying D/A converter

MC1408-8 Features

* Fast settling time

* 70ns (typ)

* Relative accuracy ±0.19% (max error)

* Non-inverting digital inputs are TTL and CMOS compatible

* High-speed multiplying rate 4.0mA/µs (input slew)

* Output voltage swing +0.5V to

* 5.0V

* Standard su

MC1408-8 General Description

The MC1508/MC1408 series of 8-bit monolithic digital-to-analog converters provide high-speed performance with low cost. They are designed for use where the output current is a linear product of an 8-bit digital word and an analog reference voltage PIN CONFIGURATIONS F, N Packages NC GND VEE 1 2 3 4.

MC1408-8 Datasheet (71.68 KB)

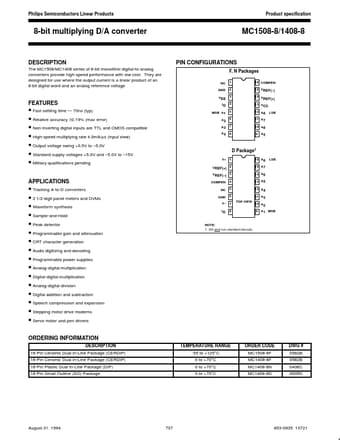

Preview of MC1408-8 PDF

Datasheet Details

Part number:

MC1408-8

Manufacturer:

NXP ↗

File Size:

71.68 KB

Description:

8-bit multiplying d/a converter.
